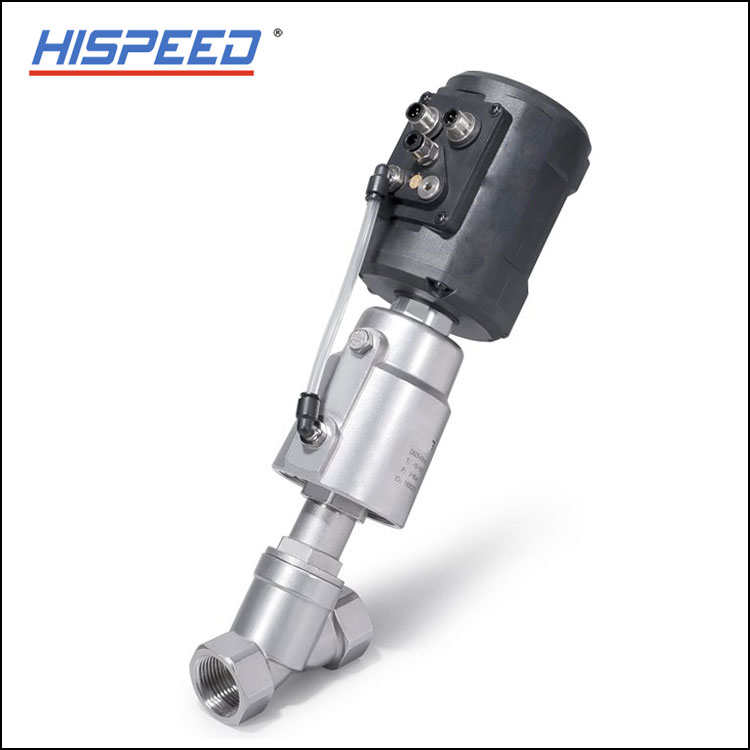

We supply Stainless Steel Proportional Control Angle Seat Valve.The HISPEED® Stainless Steel Proportional Control Angle Seat Valves are designed and manufactured to provide maximum service life and dependability.The HISPEED® Stainless Steel Proportional Control Angle Seat Valves may be used in commercial and industrial applications,including Beer drink,Printing and dyeing,Air separation,Pharmaceutical, Filling,Chemical industry,Sterilization,Foam equipment Environmental protection etc.Choose HISPEED® Stainless Steel Proportional Control Angle Seat Valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications.We are expecting to become your long term partner in China.
The HISPEED® Stainless Steel Proportional Control Angle Seat Valves are designed and manufactured to provide maximum service life and dependability.The HISPEED® Stainless Steel Proportional Control Angle Seat Valves may be used in commercial and industrial applications,including Beer drink,Printing and dyeing,Air separation,Pharma-ceutical,Filling,Chemical industry,Sterilization,Foam equipment Environmental protection etc.Choose HISPEED® Stainless Steel Proportional Control Angle Seat Valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications.We are expecting to become your long term partner in China.
Our company since its inception, always regards product quality as enterprise life, continuously improve production technology, improve product quality and continuously strengthen enterprise total quality management, in strict accordance with the national standard ISO 9001:2000 for Professional Factory for China Pneumatic Clamped 2-Way Angle Seat Valve Angle Type Control Valve with Plastic Actuator, We now have developed a responsible name amongst many customers. Quality&customer very first are usually our constant pursuit. We spare no endeavours to help make much better solutions. Look forward to long-term cooperation and mutual advantages!
Professional Factory for China Angle Seat Valve, Pneumatic Angle Seat Valve, Our pro engineering team will generally be prepared to serve you for consultation and feedback. We're able to also offer you you with free of charge samples to meet your requirements. Best efforts will likely be produced to supply you the best service and merchandise. When you are keen on our business and products and solutions, please speak to us by sending us emails or call us quickly. In an effort to know our solutions and company extra, you may come to our factory to view it. We are going to generally welcome guests from all over the world to our business to create business relations with us. Make sure you feel cost-free to speak to us for small business and we believe we will share the best trading experience with all our merchants.
Product Parameter (Specification)
Product Feature And Application
Easy to adjust and easy to operate
Stable operation
The unique adjustment cone design establishes the linear or proportional relationship between the valve opening and closing stroke and the flow rate, thus achieving accurate and fast flow adjustment.
Product Details
Connection Type: threaded, welded, quick-fit, flanged
Medium Temperature: -10°C - +180°C (PTFE normal temperature type)
+25°C - +220°C (PTFE high temperature type)
Ambient Temperature: 0—+60°C
Working Pressure: see the angle seat valve single-acting normally closed valve seat downstream installation selection table
Control Pressure: 4-7bar (58-102psi)
control Power: 24VDC±10%
Valve Setting Signal: 0/4-20mA or 0-5/10V
Power Consumption: <5W
Input Signal Impedance: 240Ωfor 0/4-20mA signal,
21KΩwhen 0-5/10V signal
Analog Output Signal: Maximum load 560Ωat 0/4-20mA,
Maximum current 10mA at 0-5/10V
Protection Level: IP65
Leakage Rating: DIN EN 12266 Class A
Deliver,Shipping And Serving
Ship from Qingdao or another Seaports
FAQ
|
|
Q |
A |
|
1 |
How many days you need to install the equipment? |
Unwanted. |
|
2 |
How many staff abroad you sent to install the equipment? |
Unwanted. |
|
3 |
Can I transfer the money to you then you pay to other supplier? |
YES. |
|
4 |
Can I delivery the goods from other supplier to your factory? Then load together? |
YES. |
|
5 |
When will you leave your factory and to have your spring festival holidays? |
According to national regulations. |
|
6 |
Can the equipment be installed under hot weather? |
YES. |
|
7 |
Can Your products be installed under the cold weather? |
YES. |
|
8 |
Do You have office in shanghai or guangzhou that i can visit? |
NONE. |
|
9 |
Can you send your staff to install the equipment for us? |
Unwanted. |
|
10 |
Can I only buy some spare parts from you? |
YES. |
|
11 |
Will you will attend the fair to show your products? |
YES. |
|
12 |
Can you send your equipment to my warehouse in guangzhou? |
YES. |
|
13 |
How long it takes you to provide the designing options for us? |
3 days at most. |
|
14 |
What is your products standardization? |
AWWA BS AIP WRAS FM. |
|
15 |
How do you pack the equipment? |
Negotiate with the customer. |
|
16 |
Can you can design the equipment according to our size? |
YES. |
|
17 |
How many years have your company made this kind of equipment? |
5 years. |
|
18 |
Which certificate do you have for your equipment? |
FM. |
|
19 |
How many staffs do you have in your factory? |
200 |
|
20 |
Do you have any agent in our country? |
NONE. |
|
21 |
Do you have any real project pictures of the equipment? |
YES. |
|
22 |
How far is your factory from the city hotel? |
10 km. |
|
23 |
How far is your factory from the airport? |
10 km. |
|
24 |
How long it will take from guangzhou to your factory? |
5 hours. |
|
25 |
Where is your factory located? |
Weifang City,Shandong province. |
|
26 |
Do you provide free spare parts? |
It depends. |
|
27 |
What is the age range for your products? |
Everyone. |
|
28 |
Do you have detailed and professional installation manual? |
YES. |
|
29 |
If OEM is acceptable? |
YES. |
|
30 |
Do you provide sample? Free or charge? |
It depends. |
|
31 |
What is your term of payment? |
30% payment in advance, 70% paid before shipment. |
|
32 |
What is your MOQ? |
One container. |
|
33 |
Are you a trading company or a manufacturer? |
Trade and Industry combination group company. |
|
34 |
How long is your delivery time? |
25-40 days. |
